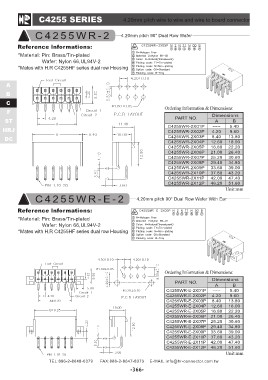

C4255 SERIES 4.20mm pitch wire to wire and wire to board connector

C 4 2 5 5 W R - 2 4.20mm pitch 90° Dual Row Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R C4255HF series dual row Housing

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F
ST C4255WR-2X01P AB
HRJ C4255WR-2X02P ----- 5.40
DC C4255WR-2X03P 4.20 9.60
C4255WR-2X04P 8.40 13.80
C4255WR-E-2 C4255WR-2X05P 12.60 18.00
C4255WR-2X06P 16.80 22.20
Reference lnformations: C4255WR-2X07P 21.00 26.40
*Material: Pin: Brass/Tin-plated C4255WR-2X08P 25.20 30.60
C4255WR-2X09P 29.40 34.80
Wafer: Nylon 66,UL94V-2 C4255WR-2X10P 33.60 39.00
*Mates with H.R C4255HF series dual row Housing C4255WR-2X11P 37.80 43.20
C4255WR-2X12P 42.00 47.40
46.20 51.60

Unit:mm

4.20mm pitch 90° Dual Row Wafer With Ear

Ordering Information & Dimensions:

PART NO. Dimensions

C4255WR-E-2X01P AB
C4255WR-E-2X02P ----- 5.40
C4255WR-E-2X03P 4.20 9.60
C4255WR-E-2X04P 8.40 13.80
C4255WR-E-2X05P 12.60 18.00
C4255WR-E-2X06P 16.80 22.20
C4255WR-E-2X07P 21.00 26.40
C4255WR-E-2X08P 25.20 30.60
C4255WR-E-2X09P 29.40 34.80
C4255WR-E-2X10P 33.60 39.00
C4255WR-E-2X11P 37.80 43.20
C4255WR-E-2X12P 42.00 47.40
46.20 51.60

Unit:mm
