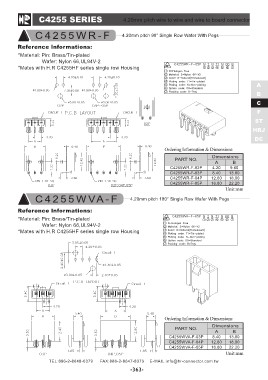

C4255 SERIES 4.20mm pitch wire to wire and wire to board connector

C4255WR-F 4.20mm pitch 90° Single Row Wafer With Pegs

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R C4255HF series single row Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Dimensions:

PART NO. Dimensions

C4255WR-F-02P AB
C4255WR-F-03P 4.20 9.60
C4255WR-F-04P 8.40 13.80
C4255WR-F-05P 12.60 18.00
16.80 22.20

Unit:mm

C 4 2 5 5 W VA - F 4.20mm pitch 180° Single Row Wafer With Pegs

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R C4255HF series single row Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB
C4255WVA-F-03P
C4255WVA-F-04P 8.40 13.80
C4255WVA-F-05P 12.60 18.00
16.80 22.20

Unit:mm
