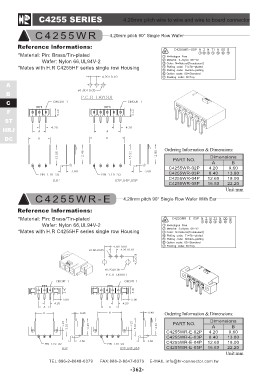

C4255 SERIES 4.20mm pitch wire to wire and wire to board connector

C4255WR 4.20mm pitch 90° Single Row Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R C4255HF series single row Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Dimensions:

PART NO. Dimensions

C4255WR-02P AB
C4255WR-03P
C4255WR-04P 4.20 9.60
C4255WR-05P
8.40 13.80

12.60 18.00

16.80 22.20

Unit:mm

C4255WR-E 4.20mm pitch 90° Single Row Wafer With Ear

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R C4255HF series single row Housing

Ordering Information & Dimensions:

PART NO. Dimensions

C4255WR-E-02P AB
C4255WR-E-03P
C4255WR-E-04P 4.20 9.60
C4255WR-E-05P
8.40 13.80

12.60 18.00

16.80 22.20

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
