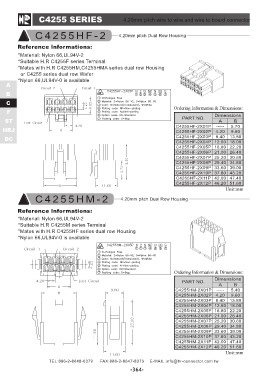

CA04820505 SERIES                 4.20mm pitch wir1e.2t5omwmirepaitnchd wire to board connector

     C 4 2 5 5 H F - 2Assembly layout  4.20mm pitch Dual Row Housing

     Reference lnformations:

       *Material: Nylon 66,UL94V-2
       *Suitable H.R C4255F series Terminal
       *Mates with H.R C4255HM,C4255HMA series dual row Housing
        or C4255 series dual row Wafer
       *Nylon 66,UL94V-0 is available
A

B

  C                                                              Ordering Information & Dimensions:
  F
 ST                                                              PART NO.  Dimensions
HRJ                                                                          AB
 DC
                                                                 C4255HF-2X01P ----- 5.70

                                                                 C4255HF-2X02P 4.20 9.60

                                                                 C4255HF-2X03P 8.40 13.80

                                                                 C4255HF-2X04P 12.60 18.00

                                                                 C4255HF-2X05P 16.80 22.20

                                                                 C4255HF-2X06P 21.00 26.40

                                                                 C4255HF-2X07P 25.20 30.60

                                                                 C4255HF-2X08P 29.40 34.80

                                                                 C4255HF-2X09P 33.60 39.00

                                                                 C4255HF-2X10P 37.80 43.20

                                                                 C4255HF-2X11P 42.00 47.40

                                                                 C4255HF-2X12P 46.20 51.60

                                                                                       Unit:mm

     C 4 2 5 5 H M - 2 4.20mm pitch Dual Row Housing

     Reference lnformations:

     *Material: Nylon 66,UL94V-2
     *Suitable H.R C4255M series Terminal
     *Mates with H.R C4255HF series dual row Housing
     *Nylon 66,UL94V-0 is available

                                                                 Ordering Information & Dimensions:

                                                                 PART NO.  Dimensions
                                                                             AB

                                                                 C4255HM-2X01P ----- 5.40

                                                                 C4255HM-2X02P 4.20 9.60

                                                                 C4255HM-2X03P 8.40 13.80

                                                                 C4255HM-2X04P 12.60 18.00

                                                                 C4255HM-2X05P 16.80 22.20

                                                                 C4255HM-2X06P 21.00 26.40

                                                                 C4255HM-2X07P 25.20 30.60

                                                                 C4255HM-2X08P 29.40 34.80

                                                                 C4255HM-2X09P 33.60 39.00

                                                                 C4255HM-2X10P 37.80 43.20

                                                                 C4255HM-2X11P 42.00 47.40

                                                                 C4255HM-2X12P 46.20 51.60

                                                                                       Unit:mm

     TEL:886-2-8648-0379      FAX:886-2-8647-8373     E-MAIL:info@hr-connector.com.tw
