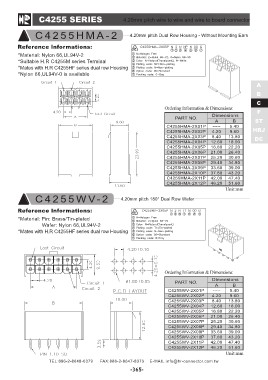

C4255 SERIES 4.20mm pitch wire to wire and wire to board connector

C4255HMA-2 4.20mm pitch Dual Row Housing - Without Mounting Ears

Reference lnformations:

*Material: Nylon 66,UL94V-2
*Suitable H.R C4255M series Terminal
*Mates with H.R C4255HF series dual row Housing
*Nylon 66,UL94V-0 is available

Ordering Information & Dimensions: A
B
PART NO. Dimensions C
F
C4255HMA-2X01P AB ST
C4255HMA-2X02P ----- 5.40 HRJ
C4255HMA-2X03P 4.20 9.60 DC
C4255HMA-2X04P 8.40 13.80
C4255HMA-2X05P 12.60 18.00
C4255HMA-2X06P 16.80 22.20
C4255HMA-2X07P 21.00 26.40
C4255HMA-2X08P 25.20 30.60
C4255HMA-2X09P 29.40 34.80
C4255HMA-2X10P 33.60 39.00
C4255HMA-2X11P 37.80 43.20
C4255HMA-2X12P 42.00 47.40
46.20 51.60

Unit:mm

C4255WV-2 4.20mm pitch 180° Dual Row Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R C4255HF series dual row Housing

Ordering Information & Dimensions:

PART NO. Dimensions

C4255WV-2X01P AB
C4255WV-2X02P ----- 5.40
C4255WV-2X03P 4.20 9.60
C4255WV-2X04P 8.40 13.80
C4255WV-2X05P 12.60 18.00
C4255WV-2X06P 16.80 22.20
C4255WV-2X07P 21.00 26.40
C4255WV-2X08P 25.20 30.60
C4255WV-2X09P 29.40 34.80
C4255WV-2X10P 33.60 39.00
C4255WV-2X11P 37.80 43.20
C4255WV-2X12P 42.00 47.40
46.20 51.60

Unit:mm
