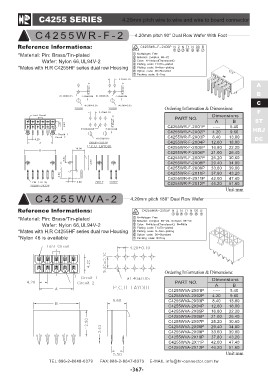

C4255 SERIES 4.20mm pitch wire to wire and wire to board connector
C4255WR-F-2 4.20mm pitch 90° Dual Row Wafer With Foot
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2
*Mates with H.R C4255HF series dual row Housing
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
F
C4255WR-F-2X01P AB ST
C4255WR-F-2X02P ----- 5.40 HRJ
C4255WR-F-2X03P 4.20 9.60 DC
C4255WR-F-2X04P 8.40 13.80
C4255WR-F-2X05P 12.60 18.00
C4255WR-F-2X06P 16.80 22.20
C4255WR-F-2X07P 21.00 26.40
C4255WR-F-2X08P 25.20 30.60
C4255WR-F-2X09P 29.40 34.80
C4255WR-F-2X10P 33.60 39.00
C4255WR-F-2X11P 37.80 43.20
C4255WR-F-2X12P 42.00 47.40
46.20 51.60
Unit:mm
C 4 2 5 5 W VA - 2 4.20mm pitch 180° Dual Row Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2
*Mates with H.R C4255HF series dual row Housing
*Nylon 46 is available
Ordering Information & Dimensions:
PART NO. Dimensions
C4255WVA-2X01P AB
C4255WVA-2X02P ----- 5.40
C4255WVA-2X03P 4.20 9.60
C4255WVA-2X04P 8.40 13.80
C4255WVA-2X05P 12.60 18.00
C4255WVA-2X06P 16.80 22.20
C4255WVA-2X07P 21.00 26.40
C4255WVA-2X08P 25.20 30.60
C4255WVA-2X09P 29.40 34.80
C4255WVA-2X10P 33.60 39.00
C4255WVA-2X11P 37.80 43.20
C4255WVA-2X12P 42.00 47.40
46.20 51.60
Unit:mm
