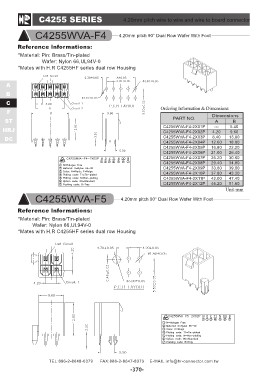

C4255 SERIES 4.20mm pitch wire to wire and wire to board connector
C4255WVA-F4 4.20mm pitch 90° Dual Row Wafer With Foot
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R C4255HF series dual row Housing
A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F
ST C4255WVA-F4-2X01P AB
HRJ C4255WVA-F4-2X02P --- 5.40
DC C4255WVA-F4-2X03P 4.20 9.60
C4255WVA-F4-2X04P 8.40 13.80
C4255WVA-F4-2X05P 12.60 18.00
C4255WVA-F4-2X06P 16.80 22.20
C4255WVA-F4-2X07P 21.00 26.40
C4255WVA-F4-2X08P 25.20 30.60
C4255WVA-F4-2X09P 29.40 34.80
C4255WVA-F4-2X10P 33.60 39.00
C4255WVA-F4-2X11P 37.80 43.20
C4255WVA-F4-2X12P 42.00 47.40
46.20 51.60
Unit:mm
C4255WVA-F5 4.20mm pitch 90° Dual Row Wafer With Foot
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R C4255HF series dual row Housing
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
