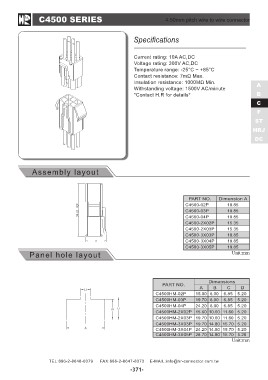

C4500 SERIES 4.50mm pitch wire to wire connector

Speciﬁcations

Current rating: 10A AC,DC A
Voltage rating: 300V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 7mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 1500V AC/minute HRJ
*Contact H.R for details* DC

Assembly layout

PART NO. Dimension A
C4500-02P 10.85
C4500-03P 10.85
C4500-04P 10.85
C4500-2X02P 15.35
C4500-2X03P 15.35
C4500-3X03P 19.85
C4500-3X04P 19.85
C4500-3X05P 19.85

Panel hole layout Unit:mm

PART NO. Dimensions
ABCD
C4500HM-02P 15.00 6.00 6.85 5.20
C4500HM-03P 19.70 6.00 6.85 5.20
C4500HM-04P 24.20 6.00 6.85 5.20
C4500HM-2X02P 15.60 10.60 11.60 5.20
C4500HM-2X03P 19.70 10.60 11.60 5.20
C4500HM-3X03P 19.70 14.80 15.70 5.20
C4500HM-3X04P 24.20 14.80 15.70 5.20
C4500HM-3X05P 28.70 14.80 15.70 5.20

Unit:mm
