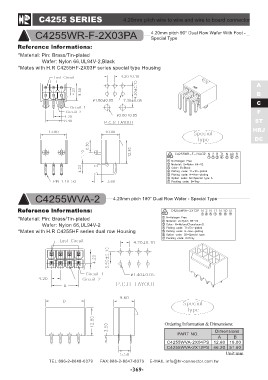

C4255 SERIES             4.20mm pitch wire to wire and wire to board connector

C4255WR-F-2X03PA                                 4.20mm pitch 90° Dual Row Wafer With Foot -
                                                 Special Type

Reference lnformations:

*Material: Pin: Brass/Tin-plated
              Wafer: Nylon 66,UL94V-2,Black

*Mates with H.R C4255HF-2X03P series special type Housing

                                                                                                 A
                                                                                                 B
                                                                                                 C
                                                                                                 F
                                                                                                ST
                                                                                               HRJ
                                                                                                DC

C4255WVA-2               4.20mm pitch 180° Dual Row Wafer - Special Type

Reference lnformations:

*Material: Pin: Brass/Tin-plated
              Wafer: Nylon 66,UL94V-2

*Mates with H.R C4255HF series dual row Housing

                                                           Ordering Information & Dimensions:

                                                                  PART NO.   Dimensions

                                                           C4255WVA-2X04PS     AB
                                                           C4255WVA-2X12PS  12.60 18.00
                                                                            46.20 51.60

                                                                                   Unit:mm

TEL:886-2-8648-0379      FAX:886-2-8647-8373     E-MAIL:info@hr-connector.com.tw
