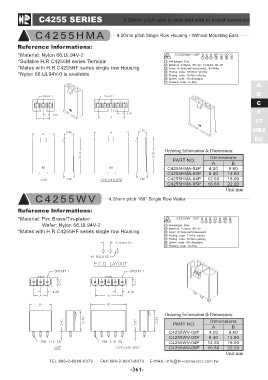

C4255 SERIES 4.20mm pitch wire to wire and wire to board connector

C4255HMA 4.20mm pitch Single Row Housing - Without Mounting Ears

Reference lnformations:

*Material: Nylon 66,UL94V-2
*Suitable H.R C4255M series Terminal
*Mates with H.R C4255HF series single row Housing
*Nylon 66,UL94V-0 is available

A
B
C
F
ST
HRJ
DC

Ordering Information & Dimensions:

PART NO. Dimensions

C4255HMA-02P AB
C4255HMA-03P
C4255HMA-04P 4.20 9.60
C4255HMA-05P
8.40 13.80

12.60 18.00

16.80 22.20

Unit:mm

C4255WV 4.20mm pitch 180° Single Row Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R C4255HF series single row Housing

Ordering Information & Dimensions:

PART NO. Dimensions

C4255WV-02P AB
C4255WV-03P
C4255WV-04P 4.20 9.60
C4255WV-05P
8.40 13.80

12.60 18.00

16.80 22.20

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
