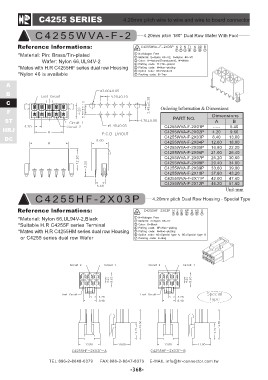

C4255 SERIES 4.20mm pitch wire to wire and wire to board connector

C 4 2 5 5 W VA - F - 2 4.20mm pitch 180° Dual Row Wafer With Foot

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R C4255HF series dual row Housing
*Nylon 46 is available

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F
ST C4255WVA-F-2X01P AB
HRJ C4255WVA-F-2X02P ----- 5.40
DC C4255WVA-F-2X03P 4.20 9.60
C4255WVA-F-2X04P 8.40 13.80
C4255HF-2X03P C4255WVA-F-2X05P 12.60 18.00
C4255WVA-F-2X06P 16.80 22.20
Reference lnformations: C4255WVA-F-2X07P 21.00 26.40
*Material: Nylon 66,UL94V-2,Black C4255WVA-F-2X08P 25.20 30.60
*Suitable H.R C4255F series Terminal C4255WVA-F-2X09P 29.40 34.80
*Mates with H.R C4255HM series dual row Housing C4255WVA-F-2X10P 33.60 39.00
or C4255 series dual row Wafer C4255WVA-F-2X11P 37.80 43.20
C4255WVA-F-2X12P 42.00 47.40
46.20 51.60

Unit:mm

4.20mm pitch Dual Row Housing - Special Type
