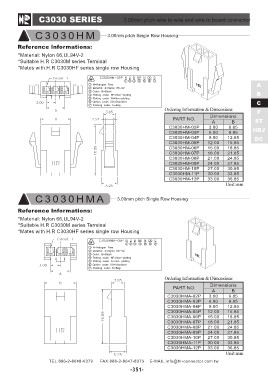

C3030 SERIES 3.00mm pitch wire to wire and wire to board connector

C3030HM 3.00mm pitch Single Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-2
*Suitable H.R C3030M series Terminal
*Mates with H.R C3030HF series single row Housing

Ordering Information & Dimensions: A
B
PART NO. Dimensions C
F
C3030HM-02P AB ST
C3030HM-03P HRJ
C3030HM-04P 3.00 6.85 DC
C3030HM-05P
C3030HM-06P 6.00 9.85
C3030HM-07P
C3030HM-08P 9.00 12.85
C3030HM-09P
C3030HM-10P 12.00 15.85
C3030HM-11P
C3030HM-12P 15.00 18.85

18.00 21.85

21.00 24.85

24.00 27.85

27.00 30.85

30.00 33.85

33.00 36.85

Unit:mm

C3030HMA 3.00mm pitch Single Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-2
*Suitable H.R C3030M series Terminal
*Mates with H.R C3030HF series single row Housing

Ordering Information & Dimensions:

PART NO. Dimensions

C3030HMA-02P AB
C3030HMA-03P
C3030HMA-04P 3.00 6.85
C3030HMA-05P
C3030HMA-06P 6.00 9.85
C3030HMA-07P
C3030HMA-08P 9.00 12.85
C3030HMA-09P
C3030HMA-10P 12.00 15.85
C3030HMA-11P
C3030HMA-12P 15.00 18.85
