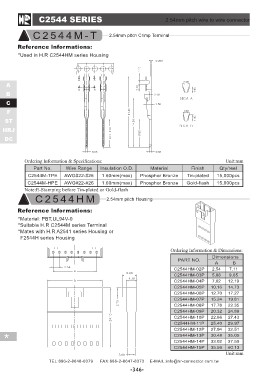

C2544 SERIES 2.54mm pitch wire to wire connector

C 2 5 4 4 M - T 2.54mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C2544HM series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Tin-plated 15,000pcs
C2544M-TPE AWG#22-#26 1.60mm(max) Phosphor Bronze Gold-flash

C2544M-HPE AWG#22-#26 1.60mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated or Gold-flash

C 2 5 4 4 H M 2.54mm pitch Housing

Reference lnformations:

*Material: PBT,UL94V-0
*Suitable H.R C2544M series Terminal
*Mates with H.R A2541 series Housing or
F2544H series Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB

C2544HM-02P 2.54 7.11

C2544HM-03P 5.08 9.65

C2544HM-04P 7.62 12.19

C2544HM-05P 10.16 14.73

C2544HM-06P 12.70 17.27

C2544HM-07P 15.24 19.81

C2544HM-08P 17.78 22.35

C2544HM-09P 20.32 24.89

C2544HM-10P 22.86 27.43

C2544HM-11P 25.40 29.97

C2544HM-12P 27.94 32.51

* C2544HM-13P 30.48 35.05
C2544HM-14P 33.02 37.59
C2544HM-15P 35.56 40.13

Unit:mm
