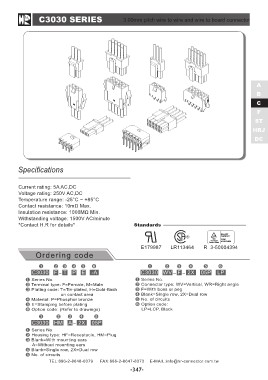

C3030 SERIES 3.00mm pitch wire to wire and wire to board connector

A
B
C
F
ST
HRJ
DC

Specifications

Current rating: 5A AC,DC Standards
Voltage rating: 250V AC,DC
Temperature range: -25°C ~ +85°C ® TÜV BAUART
Contact resistance: 10mΩ Max. Rheinland GEPRÜFT
Insulation resistance: 1000MΩ Min. LR113464 Product Aafety
Withstanding voltage: 1500V AC/minute TYPE
*Contact H.R for details* APPROVED

Ordering code E179987 R 3-50004394

C3030 F - T P E -A C3030 WV - F - 2X 05P LP

Series No. Series No.
Terminal type: F=Female, M=Male Connector type: WV=Vertical, WR=Right angle
Plating code: T=Tin-plated, H=Gold-flash F=With boss or peg
Blank=Single row, 2X=Dual row
on contact area No. of circuits
Material: P=Phosphor bronze Option code:
E=Stamping before plating LP=LCP, Black
Option code: (Refer to drawings)

C3030 HM A - 2X 05P E-MAIL:info@hr-connector.com.tw

Series No.
Housing type: HF=Receptacle, HM=Plug
Blank=With mounting ears
A=Without mounting ears
Blank=Single row, 2X=Dual row
No. of circuits

TEL:886-2-8648-0379 FAX:886-2-8647-8373

-347-
