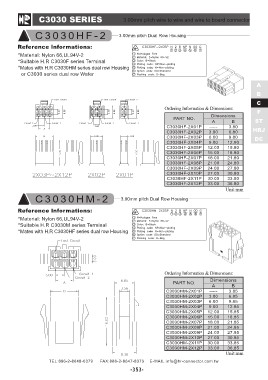

C3030 SERIES 3.00mm pitch wire to wire and wire to board connector

C3030HF-2 3.00mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-2
*Suitable H.R C3030F series Terminal
*Mates with H.R C3030HM series dual row Housing

or C3030 series dual row Wafer

Ordering Information & Dimensions: A
B
PART NO. Dimensions C
F
C3030HF-2X01P AB ST
C3030HF-2X02P HRJ
C3030HF-2X03P ----- 3.80 DC
C3030HF-2X04P
C3030HF-2X05P 3.00 6.80
C3030HF-2X06P
C3030HF-2X07P 6.00 9.80
C3030HF-2X08P
C3030HF-2X09P 9.00 12.80
C3030HF-2X10P
C3030HF-2X11P 12.00 15.80
C3030HF-2X12P
15.00 18.80

18.00 21.80

21.00 24.80

24.00 27.80

27.00 30.80

30.00 33.80

33.00 36.80

Unit:mm

C3030HM-2 3.00mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-2
*Suitable H.R C3030M series Terminal
*Mates with H.R C3030HF series dual row Housing

Ordering Information & Dimensions:

PART NO. Dimensions

C3030HM-2X01P AB
C3030HM-2X02P
C3030HM-2X03P ----- 3.85
C3030HM-2X04P
C3030HM-2X05P 3.00 6.85
C3030HM-2X06P
C3030HM-2X07P 6.00 9.85
C3030HM-2X08P
C3030HM-2X09P 9.00 12.85
C3030HM-2X10P
C3030HM-2X11P 12.00 15.85
C3030HM-2X12P
15.00 18.85

18.00 21.85

21.00 24.85

24.00 27.85

27.00 30.85

30.00 33.85

33.00 36.85

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-353-
