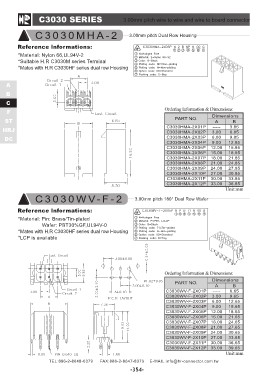

C3030 SERIES 3.00mm pitch wire to wire and wire to board connector

C 3 0 3 0 M H A - 2 3.00mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-2
*Suitable H.R C3030M series Terminal
*Mates with H.R C3030HF series dual row Housing

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F
ST C3030HMA-2X01P AB
HRJ C3030HMA-2X02P ----- 3.85
DC C3030HMA-2X03P 3.00 6.85
C3030HMA-2X04P 6.00 9.85
C3030WV-F-2 C3030HMA-2X05P 9.00 12.85
C3030HMA-2X06P 12.00 15.85
Reference lnformations: C3030HMA-2X07P 15.00 18.85
*Material: Pin: Brass/Tin-plated C3030HMA-2X08P 18.00 21.85
C3030HMA-2X09P 21.00 24.85
Wafer: PBT30%GF,UL94V-0 C3030HMA-2X10P 24.00 27.85
*Mates with H.R C3030HF series dual row Housing C3030HMA-2X11P 27.00 30.85
*LCP is available C3030HMA-2X12P 30.00 33.85
33.00 36.85

Unit:mm

3.00mm pitch 180° Dual Row Wafer

Ordering Information & Dimensions:

PART NO. Dimensions

C3030WV-F-2X01P AB
C3030WV-F-2X02P ----- 6.65
C3030WV-F-2X03P 3.00 9.65
C3030WV-F-2X04P 6.00 12.65
C3030WV-F-2X05P 9.00 15.65
C3030WV-F-2X06P 12.00 18.65
C3030WV-F-2X07P 15.00 21.65
C3030WV-F-2X08P 18.00 24.65
C3030WV-F-2X09P 21.00 27.65
C3030WV-F-2X10P 24.00 30.65
C3030WV-F-2X11P 27.00 33.65
C3030WV-F-2X12P 30.00 36.65
33.00 39.65

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-354-
