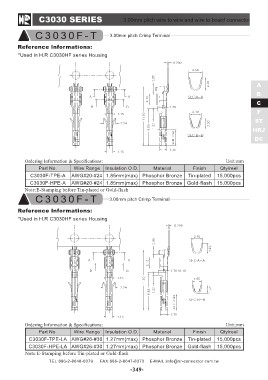

C3030 SERIES 3.00mm pitch wire to wire and wire to board connector

C3030F-T 3.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C3030HF series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Tin-plated 15,000pcs
C3030F-TPE-A AWG#20-#24 1.85mm(max) Phosphor Bronze Gold-flash

C3030F-HPE-A AWG#20-#24 1.85mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated or Gold-flash

C3030F-T 3.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C3030HF series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Tin-plated 15,000pcs
C3030F-TPE-LA AWG#26-#30 1.27mm(max) Phosphor Bronze Gold-flash

C3030F-HPE-LA AWG#26-#30 1.27mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated or Gold-flash
