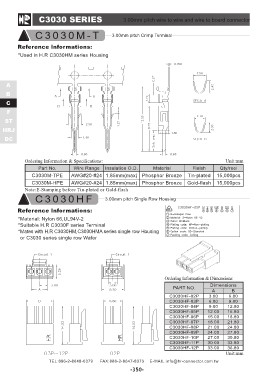

C3030 SERIES 3.00mm pitch wire to wire and wire to board connector

C3030M-T 3.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C3030HM series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Tin-plated 15,000pcs
C3030M-TPE AWG#20-#24 1.85mm(max) Phosphor Bronze Gold-flash

C3030M-HPE AWG#20-#24 1.85mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated or Gold-flash

C3030HF 3.00mm pitch Single Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-2
*Suitable H.R C3030F series Terminal
*Mates with H.R C3030HM,C3030HMA series single row Housing
or C3030 series single row Wafer

Ordering Information & Dimensions:

PART NO. Dimensions

C3030HF-02P AB
C3030HF-03P
C3030HF-04P 3.00 6.80
C3030HF-05P
C3030HF-06P 6.00 9.80
C3030HF-07P
C3030HF-08P 9.00 12.80
C3030HF-09P
C3030HF-10P 12.00 15.80
C3030HF-11P
C3030HF-12P 15.00 18.80

18.00 21.80

21.00 24.80

24.00 27.80

27.00 30.80

30.00 33.80

33.00 36.80

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-350-
