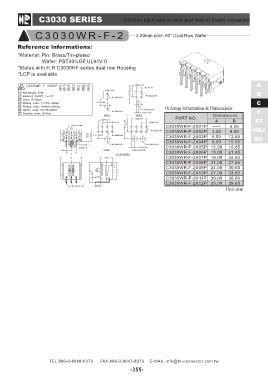

C3030 SERIES 3.00mm pitch wire to wire and wire to board connector
C 3 0 3 0 W R - F - 2 3.00mm pitch 90° Dual Row Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: PBT30%GF,UL94V-0
*Mates with H.R C3030HF series dual row Housing
*LCP is available
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
F
C3030WR-F-2X01P AB ST
C3030WR-F-2X02P ----- 6.65 HRJ
C3030WR-F-2X03P 3.00 9.65 DC
C3030WR-F-2X04P 6.00 12.65
C3030WR-F-2X05P 9.00 15.65
C3030WR-F-2X06P 12.00 18.65
C3030WR-F-2X07P 15.00 21.65
C3030WR-F-2X08P 18.00 24.65
C3030WR-F-2X09P 21.00 27.65
C3030WR-F-2X10P 24.00 30.65
C3030WR-F-2X11P 27.00 33.65
C3030WR-F-2X12P 30.00 36.65
33.00 39.65
Unit:mm
