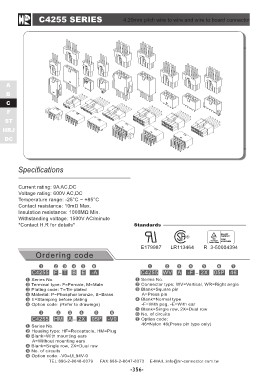

C4255 SERIES 4.20mm pitch wire to wire and wire to board connector

Specifications

A
B
C
F
ST
HRJ
DC

Standards

Specifications

Current rating: 9A AC,DC Standards
Voltage rating: 600V AC,DC
Temperature range: -25°C ~ +85°C ® TÜV BAUART
Contact resistance: 10mΩ Max. Rheinland GEPRÜFT
Insulation resistance: 1000MΩ Min. LR113464 Product Aafety
Withstanding voltage: 1500V AC/minute TYPE
*Contact H.R for details* APPROVED

Ordering code E179987 R 3-50004394

C4255 F - T B E -A C4255 WV A -F - 2X 05P 46

Series No. Series No.

Terminal type: F=Female, M=Male Connector type: WV=Vertical, WR=Right angle

Plating code: T=Tin-plated Blank=Square pin

Material: P=Phosphor bronze, B=Brass A=Press pin

E=Stamping before plating Blank=Normal type

Option code: (Refer to drawings) -F=With peg, -E=With ear

Blank=Single row, 2X=Dual row

C4255 HM A - 2X 05P -V0 No. of circuits
Option code:
Series No. 46=Nylon 46(Press pin type only)

Housing type: HF=Receptacle, HM=Plug

Blank=With mounting ears

A=Without mounting ears

Blank=Single row, 2X=Dual row

No. of circuits

Option code: -V0=UL94V-0

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-356-
