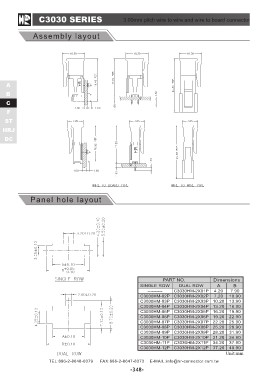

C3030 SERIES 3.00mm pitch wire to wire and wire to board connector
Assembly layout

A
B
C
F
ST
HRJ
DC

Panel hole layout

PART NO. Dimensions

SINGLE ROW DUAL ROW AB
4.20 7.90
---------- C3030HM-2X01P 7.20 10.90
10.20 13.90
C3030HM-02P C3030HM-2X02P 13.20 16.90
16.20 19.90
C3030HM-03P C3030HM-2X03P 19.20 22.90
22.20 25.90
C3030HM-04P C3030HM-2X04P 25.20 28.90
28.20 31.90
C3030HM-05P C3030HM-2X05P 31.20 34.90
34.20 37.90
C3030HM-06P C3030HM-2X06P 37.20 40.90

C3030HM-07P C3030HM-2X07P Unit:mm

C3030HM-08P C3030HM-2X08P

C3030HM-09P C3030HM-2X09P

C3030HM-10P C3030HM-2X10P

C3030HM-11P C3030HM-2X11P

C3030HM-12P C3030HM-2X12P
