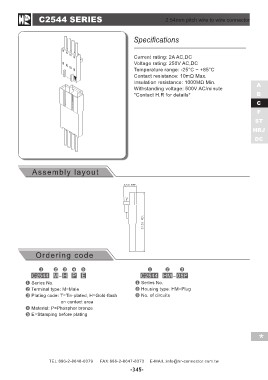

C2544 SERIES 2.54mm pitch wire to wire connector
Assembly layout
Specifications
Current rating: 2A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 10mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 500V AC/minute HRJ
*Contact H.R for details* DC
Ordering code C2544 HM - 05P
C2544 M - H P E Series No.
Housing type: HM=Plug
Series No. No. of circuits
Terminal type: M=Male
Plating code: T=Tin-plated, H=Gold-flash
on contact area
Material: P=Phosphor bronze
E=Stamping before plating
*
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
