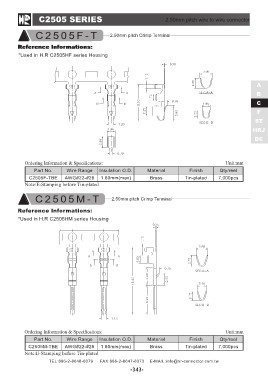

C2505 SERIES 2.50mm pitch wire to wire connector

AC 02 85 00 05 HF -I T 2.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C2505HF series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 7,000pcs
Brass Tin-plated
C2505F-TBE AWG#22-#28 1.80mm(max)
Note:E-Stamping before Tin-plated

AC 02 85 0 05 HMI- T 2.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C2505HM series Housing

Ordering Information & Specifications: Unit:mm

Part No. Wire Range Insulation O.D. Material Finish Qty/reel

C2505M-TBE AWG#22-#28 1.80mm(max) Brass Tin-plated 7,000pcs
Note:E-Stamping before Tin-plated
