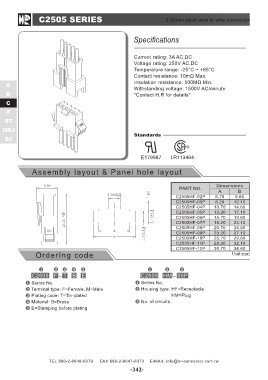

C2505 SERIES 2.50mm pitch wire to wire connector

A Specifications
B
C Current rating: 3A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 10mΩ Max.
DC Insulation resistance: 500MΩ Min.
Withstanding voltage: 1500V AC/minute
*Contact H.R for details*

Standards

E179987 ®

LR113464

Assembly layout & Panel hole layout

PART NO. Dimensions

C2505HF-02P AB
C2505HF-03P
C2505HF-04P 5.70 9.60
C2505HF-05P
C2505HF-06P 8.20 12.10
C2505HF-07P
C2505HF-08P 10.70 14.60
C2505HF-09P
C2505HF-10P 13.20 17.10
C2505HF-11P
C2505HF-12P 15.70 19.60

18.20 22.10

20.70 24.60

23.20 27.10

25.70 29.60

28.20 32.10

30.70 34.60

Ordering code Unit:mm

C2505 F - T B E C2505 HM - 05P

Series No. Series No.
Terminal type: F=Female, M=Male Housing type: HF=Receptacle
Plating code: T=Tin-plated
Material: B=Brass HM=Plug
E=Stamping before plating No. of circuits

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
