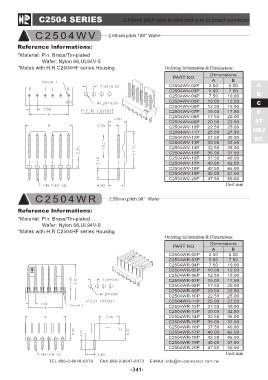

C2504 SERIES 2.50mm pitch wire to wire and wire to board connector
C2504WV 2.50mm pitch 180° Wafer
Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R C2504HF series Housing
PART NO. Dimensions
C2504WV-02P AB A
C2504WV-03P B
C2504WV-04P 2.50 5.00 C
C2504WV-05P F
C2504WV-06P 5.00 7.50 ST
C2504WV-07P HRJ
C2504WV-08P 7.50 10.00 DC
C2504WV-09P
C2504WV-10P 10.00 12.50
C2504WV-11P
C2504WV-12P 12.50 15.00
C2504WV-13P
C2504WV-14P 15.00 17.50
C2504WV-15P
C2504WV-16P 17.50 20.00
C2504WV-17P
C2504WV-18P 20.00 22.50
C2504WV-19P
C2504WV-20P 22.50 25.00
25.00 27.50
27.50 30.00
30.00 32.50
32.50 35.00
35.00 37.50
37.50 40.00
40.00 42.50
42.50 45.00
45.00 47.50
47.50 50.00
Unit:mm
C2504WR 2.50mm pitch 90° Wafer
Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R C2504HF series Housing
PART NO. Dimensions
C2504WR-02P AB
C2504WR-03P
C2504WR-04P 2.50 5.00
C2504WR-05P
C2504WR-06P 5.00 7.50
C2504WR-07P
C2504WR-08P 7.50 10.00
C2504WR-09P
C2504WR-10P 10.00 12.50
C2504WR-11P
C2504WR-12P 12.50 15.00
C2504WR-13P
C2504WR-14P 15.00 17.50
C2504WR-15P
C2504WR-16P 17.50 20.00
C2504WR-17P
C2504WR-18P 20.00 22.50
C2504WR-19P
C2504WR-20P 22.50 25.00
25.00 27.50
27.50 30.00
30.00 32.50
32.50 35.00
35.00 37.50
37.50 40.00
40.00 42.50
42.50 45.00
45.00 47.50
47.50 50.00
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-341-
