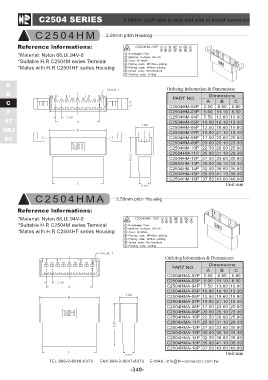

C2504 SERIES 2.50mm pitch wire to wire and wire to board connector
C 2 5 0 4 H M 2.50mm pitch Housing
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R C2504M series Terminal
*Mates with H.R C2504HF series Housing
A Ordering Information & Dimensions:
B
C PART NO.
F ABC
ST
HRJ
DC
C 2 5 0 4 H M A 2.50mm pitch Housing
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R C2504M series Terminal
*Mates with H.R C2504HF series Housing
TEL:886-2-8648-0379 FAX:886-2-8647-8373
-340-
Dimensions
C2504HM-02P 2.50 8.60 5.80
C2504HM-03P 5.00 11.10 8.30
C2504HM-04P 7.50 13.60 10.80
C2504HM-05P 10.00 16.10 13.30
C2504HM-06P 12.50 18.60 15.80
C2504HM-07P 15.00 21.10 18.30
C2504HM-08P 17.50 23.60 20.80
C2504HM-09P 20.00 26.10 23.30
C2504HM-10P 22.50 28.60 25.80
C2504HM-11P 25.00 31.10 28.30
C2504HM-12P 27.50 33.60 30.80
C2504HM-13P 30.00 36.10 33.30
C2504HM-14P 32.50 38.60 35.80
C2504HM-15P 35.00 41.10 38.30
C2504HM-16P 37.50 43.60 40.80
Unit:mm
Ordering Information & Dimensions:
PART NO. Dimensions
ABC
C2504HMA-02P 2.50 8.60 5.80
C2504HMA-03P 5.00 11.10 8.30
C2504HMA-04P 7.50 13.60 10.80
C2504HMA-05P 10.00 16.10 13.30
C2504HMA-06P 12.50 18.60 15.80
C2504HMA-07P 15.00 21.10 18.30
C2504HMA-08P 17.50 23.60 20.80
C2504HMA-09P 20.00 26.10 23.30
C2504HMA-10P 22.50 28.60 25.80
C2504HMA-11P 25.00 31.10 28.30
C2504HMA-12P 27.50 33.60 30.80
C2504HMA-13P 30.00 36.10 33.30
C2504HMA-14P 32.50 38.60 35.80
C2504HMA-15P 35.00 41.10 38.30
C2504HMA-16P 37.50 43.60 40.80
Unit:mm
