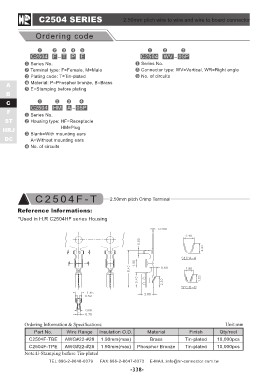

C2504 SERIES 2.50mm pitch wire to wire and wire to board connector
Ordering code

C2504 F - T P E C2504 WV - 05P

Series No. Series No.
Terminal type: F=Female, M=Male Connector type: WV=Vertical, WR=Right angle
Plating code: T=Tin-plated No. of circuits
Material: P=Phosphor bronze, B=Brass
A E=Stamping before plating
B
C C2504 HM A - 05P
F
ST Series No.
HRJ Housing type: HF=Receptacle
DC
HM=Plug
Blank=With mounting ears
A=Without mounting ears
No. of circuits

C2504F-T 2.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C2504HF series Housing

Ordering Information & Specifications: Unit:mm

Part No. Wire Range Insulation O.D. Material Finish Qty/reel

C2504F-TBE AWG#22-#28 1.90mm(max) Brass Tin-plated 10,000pcs

C2504F-TPE AWG#22-#28 1.90mm(max) Phosphor Bronze Tin-plated 10,000pcs
Note:E-Stamping before Tin-plated
