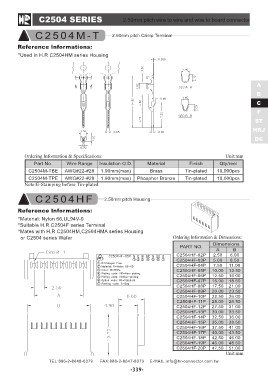

C2504 SERIES 2.50mm pitch wire to wire and wire to board connector

C2504M-T 2.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C2504HM series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Brass Tin-plated 10,000pcs
C2504M-TBE AWG#22-#28 1.90mm(max) Tin-plated
Phosphor Bronze
C2504M-TPE AWG#22-#28 1.90mm(max)
Note:E-Stamping before Tin-plated

C 2 5 0 4 H F 2.50mm pitch Housing

Reference lnformations: Ordering Information & Dimensions:

*Material: Nylon 66,UL94V-0
*Suitable H.R C2504F series Terminal
*Mates with H.R C2504HM,C2504HMA series Housing
or C2504 series Wafer

PART NO. Dimensions

C2504HF-02P AB
C2504HF-03P 2.50 6.00
C2504HF-04P 5.00 8.50
C2504HF-05P 7.50 11.00
C2504HF-06P 10.00 13.50
C2504HF-07P 12.50 16.00
C2504HF-08P 15.00 18.50
C2504HF-09P 17.50 21.00
C2504HF-10P 20.00 23.50
C2504HF-11P 22.50 26.00
C2504HF-12P 25.00 28.50
C2504HF-13P 27.50 31.00
C2504HF-14P 30.00 33.50
C2504HF-15P 32.50 36.00
C2504HF-16P 35.00 38.50
C2504HF-17P 37.50 41.00
C2504HF-18P 40.00 43.50
C2504HF-19P 42.50 46.00
C2504HF-20P 45.00 48.50
47.50 51.00

Unit:mm
