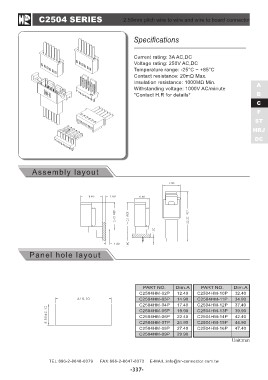

C2504 SERIES 2.50mm pitch wire to wire and wire to board connector

Speciﬁcations

Current rating: 3A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 20mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 1000V AC/minute HRJ
*Contact H.R for details* DC

Assembly layout

Panel hole layout

PART NO. Dim.A PART NO. Dim.A
C2504HM-02P 12.40 C2504HM-10P 32.40
C2504HM-03P 14.90 C2504HM-11P 34.90
C2504HM-04P 17.40 C2504HM-12P 37.40
C2504HM-05P 19.90 C2504HM-13P 39.90
C2504HM-06P 22.40 C2504HM-14P 42.40
C2504HM-07P 24.90 C2504HM-15P 44.90
C2504HM-08P 27.40 C2504HM-16P 47.40
C2504HM-09P 29.90

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-337-
