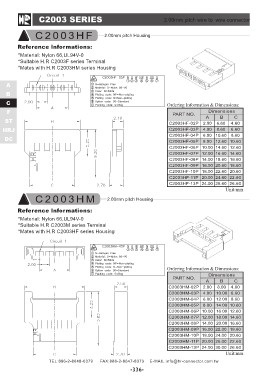

C2003 SERIES 2.00mm pitch wire to wire connector

AC 02 80 0 03 H IF 2.00mm pitch Housing

Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R C2003F series Terminal
*Mates with H.R C2003HM series Housing

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F ABC
ST
HRJ C2003HF-02P 2.00 6.60 4.60
DC
C2003HF-03P 4.00 8.60 6.60
AC 02 80 0 03 H IM 2.00mm pitch Housing
C2003HF-04P 6.00 10.60 8.60
Reference lnformations:
*Material: Nylon 66,UL94V-0 C2003HF-05P 8.00 12.60 10.60
*Suitable H.R C2003M series Terminal
*Mates with H.R C2003HF series Housing C2003HF-06P 10.00 14.60 12.60

C2003HF-07P 12.00 16.60 14.60

C2003HF-08P 14.00 18.60 16.60

C2003HF-09P 16.00 20.60 18.60

C2003HF-10P 18.00 22.60 20.60

C2003HF-11P 20.00 24.60 22.60

C2003HF-13P 24.00 28.60 26.60

Unit:mm

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

C2003HM-02P 2.00 8.00 4.60

C2003HM-03P 4.00 10.00 6.60

C2003HM-04P 6.00 12.00 8.60

C2003HM-05P 8.00 14.00 10.60

C2003HM-06P 10.00 16.00 12.60

C2003HM-07P 12.00 18.00 14.60

C2003HM-08P 14.00 20.00 16.60

C2003HM-09P 16.00 22.00 18.60

C2003HM-10P 18.00 24.00 20.60

C2003HM-11P 20.00 26.00 22.60

C2003HM-13P 24.00 30.00 26.60

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-336-
