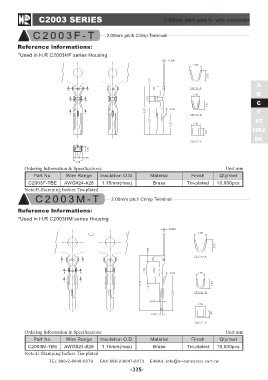

C2003 SERIES 2.00mm pitch wire to wire connector

CA20080030FH-IT 2.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C2003HF series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated
C2003F-TBE AWG#24-#28 1.15mm(max) Brass

Note:E-Stamping before Tin-plated

AC 02 80 0 03 HMI- T 2.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C2003HM series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Brass Tin-plated
C2003M-TBE AWG#24-#28 1.15mm(max)
Note:E-Stamping before Tin-plated

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-335-
