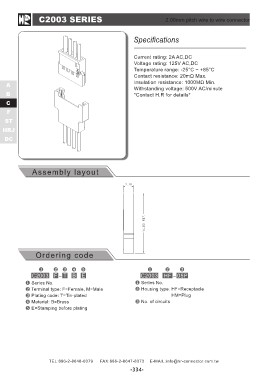

C2003 SERIES 2.00mm pitch wire to wire connector
A Specifications
B
C Current rating: 2A AC,DC
F Voltage rating: 125V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 500V AC/minute
Assembly layout *Contact H.R for details*
Ordering code C2003 HF - 05P
C2003 F - T B E Series No.
Housing type: HF=Receptacle
Series No.
Terminal type: F=Female, M=Male HM=Plug
Plating code: T=Tin-plated No. of circuits
Material: B=Brass
E=Stamping before plating
