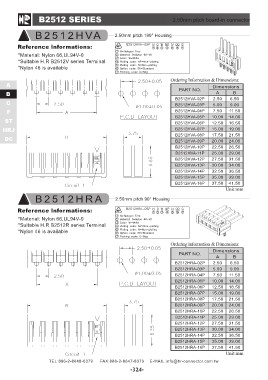

B2512 SERIES 2.50mm pitch board-in connector

B 2 5 1 2 H VA 2.50mm pitch 180° Housing

Reference lnformations: Ordering Information & Dimensions:
*Material: Nylon 66,UL94V-0
*Suitable H.R B2512V series Terminal PART NO. Dimensions
*Nylon 46 is available AB

A B2512HVA-02P 2.50 6.50
B
C B2512HVA-03P 5.00 9.00
F
ST B2512HVA-04P 7.50 11.50
HRJ
DC B2512HVA-05P 10.00 14.00

B2512HRA B2512HVA-06P 12.50 16.50

Reference lnformations: B2512HVA-07P 15.00 19.00
*Material: Nylon 66,UL94V-0
*Suitable H.R B2512R series Terminal B2512HVA-08P 17.50 21.50
*Nylon 46 is available
B2512HVA-09P 20.00 24.00

B2512HVA-10P 22.50 26.50

B2512HVA-11P 25.00 29.00

B2512HVA-12P 27.50 31.50

B2512HVA-13P 30.00 34.00

B2512HVA-14P 32.50 36.50

B2512HVA-15P 35.00 39.00

B2512HVA-16P 37.50 41.50

Unit:mm

2.50mm pitch 90° Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB

B2512HRA-02P 2.50 6.50

B2512HRA-03P 5.00 9.00

B2512HRA-04P 7.50 11.50

B2512HRA-05P 10.00 14.00

B2512HRA-06P 12.50 16.50

B2512HRA-07P 15.00 19.00

B2512HRA-08P 17.50 21.50

B2512HRA-09P 20.00 24.00

B2512HRA-10P 22.50 26.50

B2512HRA-11P 25.00 29.00

B2512HRA-12P 27.50 31.50

B2512HRA-13P 30.00 34.00

B2512HRA-14P 32.50 36.50

B2512HRA-15P 35.00 39.00

B2512HRA-16P 37.50 41.50

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-324-
