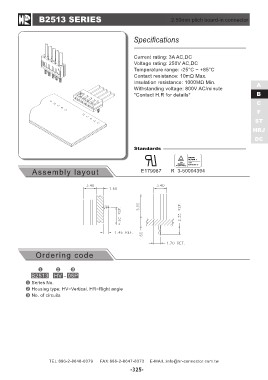

B2513 SERIES 2.50mm pitch board-in connector
Assembly layout
Specifications
Current rating: 3A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 10mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 800V AC/minute HRJ
*Contact H.R for details* DC
Standards TÜV BAUART
Rheinland GEPRÜFT
E179987 Product Aafety
TYPE
APPROVED
R 3-50004394
Ordering code
B2513 HV - 05P
Series No.
Housing type: HV=Vertical, HR=Right angle
No. of circuits
