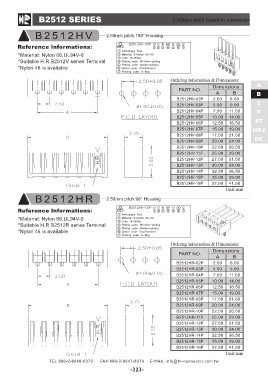

B2512 SERIES
B2512HV
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R B2512V series Terminal
*Nylon 46 is available
B2512HR
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R B2512R series Terminal
*Nylon 46 is available
TEL:886-2-8648-0379 FAX:886-2-8647-8373
2.50mm pitch board-in connector
2.50mm pitch 180° Housing
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
AB F
ST
B2512HV-02P 2.50 6.50 HRJ
DC
B2512HV-03P 5.00 9.00
B2512HV-04P 7.50 11.50
B2512HV-05P 10.00 14.00
B2512HV-06P 12.50 16.50
B2512HV-07P 15.00 19.00
B2512HV-08P 17.50 21.50
B2512HV-09P 20.00 24.00
B2512HV-10P 22.50 26.50
B2512HV-11P 25.00 29.00
B2512HV-12P 27.50 31.50
B2512HV-13P 30.00 34.00
B2512HV-14P 32.50 36.50
B2512HV-15P 35.00 39.00
B2512HV-16P 37.50 41.50
Unit:mm
2.50mm pitch 90° Housing
Ordering Information & Dimensions:
PART NO. Dimensions
AB
B2512HR-02P 2.50 6.50
B2512HR-03P 5.00 9.00
B2512HR-04P 7.50 11.50
B2512HR-05P 10.00 14.00
B2512HR-06P 12.50 16.50
B2512HR-07P 15.00 19.00
B2512HR-08P 17.50 21.50
B2512HR-09P 20.00 24.00
B2512HR-10P 22.50 26.50
B2512HR-11P 25.00 29.00
B2512HR-12P 27.50 31.50
B2512HR-13P 30.00 34.00
B2512HR-14P 32.50 36.50
B2512HR-15P 35.00 39.00
B2512HR-16P 37.50 41.50
Unit:mm
