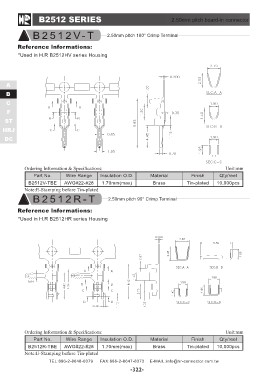

B2512 SERIES 2.50mm pitch board-in connector

B2512V-T 2.50mm pitch 180° Crimp Terminal

Reference lnformations:
*Used in H.R B2512HV series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated
B2512V-TBE AWG#22-#28 1.70mm(max) Brass

Note:E-Stamping before Tin-plated

B2512R-T 2.50mm pitch 90° Crimp Terminal

Reference lnformations:
*Used in H.R B2512HR series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Brass Tin-plated
B2512R-TBE AWG#22-#28 1.70mm(max)
Note:E-Stamping before Tin-plated

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-322-
