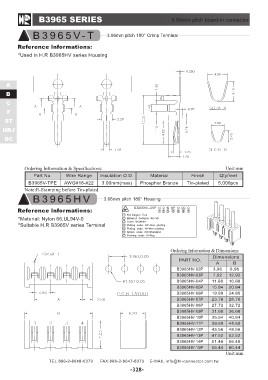

B3965 SERIES 3.96mm pitch board-in connector

B3965V-T 3.96mm pitch 180° Crimp Terminal

Reference lnformations:
*Used in H.R B3965HV series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 5,000pcs
Tin-plated
B3965V-TPE AWG#18-#22 3.00mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated

B3965HV 3.96mm pitch 180° Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R B3965V series Terminal

Ordering Information & Dimensions:

PART NO. Dimensions
AB

B3965HV-02P 3.96 8.96

B3965HV-03P 7.92 12.92

B3965HV-04P 11.88 16.88

B3965HV-05P 15.84 20.84

B3965HV-06P 19.80 24.80

B3965HV-07P 23.76 28.76

B3965HV-08P 27.72 32.72

B3965HV-09P 31.68 36.68

B3965HV-10P 35.64 40.64

B3965HV-11P 39.60 44.60

B3965HV-12P 43.56 48.56

B3965HV-13P 47.52 52.52

B3965HV-14P 51.48 56.48

B3965HV-15P 55.44 60.44

Unit:mm
