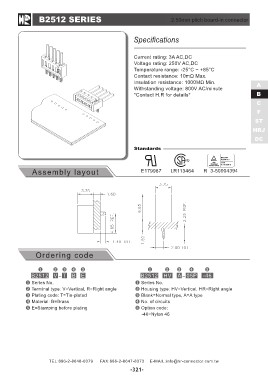

B2512 SERIES 2.50mm pitch board-in connector
Assembly layout
Specifications
Current rating: 3A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 10mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 800V AC/minute HRJ
*Contact H.R for details* DC
Standards
® TÜV BAUART
Rheinland GEPRÜFT
LR113464 Product Aafety
TYPE
APPROVED
E179987 R 3-50004394
Ordering code B2512 HV A - 05P -46
B2512 V - T B E Series No.
Housing type: HV=Vertical, HR=Right angle
Series No. Blank=Normal type, A=A type
Terminal type: V=Vertical, R=Right angle No. of circuits
Plating code: T=Tin-plated Option code:
Material: B=Brass -46=Nylon 46
E=Stamping before plating
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
