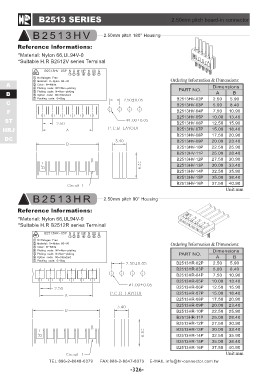

B2513 SERIES 2.50mm pitch board-in connector

B2513HV 2.50mm pitch 180° Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R B2512V series Terminal

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F AB
ST
HRJ B2513HV-02P 2.50 5.90
DC
B2513HV-03P 5.00 8.40

B2513HV-04P 7.50 10.90

B2513HV-05P 10.00 13.40

B2513HV-06P 12.50 15.90

B2513HV-07P 15.00 18.40

B2513HV-08P 17.50 20.90

B2513HV-09P 20.00 23.40

B2513HV-10P 22.50 25.90

B2513HV-11P 25.00 28.40

B2513HV-12P 27.50 30.90

B2513HV-13P 30.00 33.40

B2513HV-14P 32.50 35.90

B2513HV-15P 35.00 38.40

B2513HV-16P 37.50 40.90

Unit:mm

B2513HR 2.50mm pitch 90° Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R B2512R series Terminal

Ordering Information & Dimensions:

PART NO. Dimensions
AB

B2513HR-02P 2.50 5.90

B2513HR-03P 5.00 8.40

B2513HR-04P 7.50 10.90

B2513HR-05P 10.00 13.40

B2513HR-06P 12.50 15.90

B2513HR-07P 15.00 18.40

B2513HR-08P 17.50 20.90

B2513HR-09P 20.00 23.40

B2513HR-10P 22.50 25.90

B2513HR-11P 25.00 28.40

B2513HR-12P 27.50 30.90

B2513HR-13P 30.00 33.40

B2513HR-14P 32.50 35.90

B2513HR-15P 35.00 38.40

B2513HR-16P 37.50 40.90

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-326-
