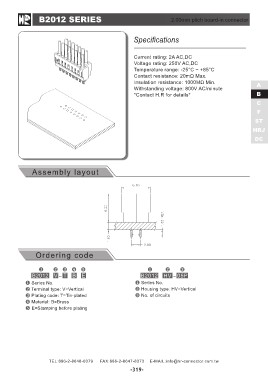

B2012 SERIES 2.00mm pitch board-in connector
Assembly layout
Specifications

Current rating: 2A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 20mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 800V AC/minute HRJ
*Contact H.R for details* DC

Ordering code B2012 HV - 05P

B2012 V - T B E Series No.
Housing type: HV=Vertical
Series No. No. of circuits
Terminal type: V=Vertical
Plating code: T=Tin-plated
Material: B=Brass
E=Stamping before plating

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
