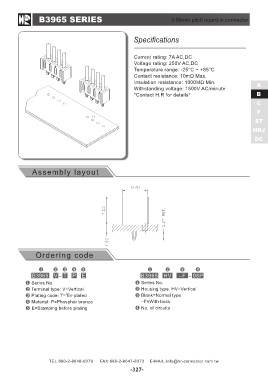

B3965 SERIES               3.96mm pitch board-in connector
Assembly layout
                             Specifications

                             Current rating: 7A AC,DC                               A
                             Voltage rating: 250V AC,DC                             B
                             Temperature range: -25°C ~ +85°C                       C
                             Contact resistance: 10mΩ Max.                          F
                             Insulation resistance: 1000MΩ Min.                    ST
                             Withstanding voltage: 1500V AC/minute                HRJ
                             *Contact H.R for details*                             DC

 Ordering code               B3965 HV –F - 05P

B3965 V - T P E              Series No.
                             Housing type: HV=Vertical
Series No.                   Blank=Normal type
Terminal type: V=Vertical    –F=With boss
Plating code: T=Tin-plated   No. of circuits
Material: P=Phosphor bronze
E=Stamping before plating
