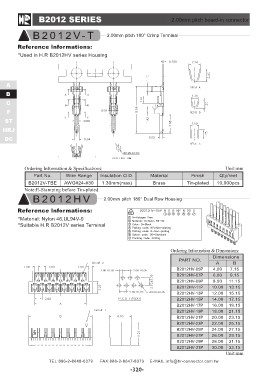

B2012 SERIES 2.00mm pitch board-in connector

B2012V-T 2.00mm pitch 180° Crimp Terminal

Reference lnformations:
*Used in H.R B2012HV series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated
B2012V-TBE AWG#24-#30 1.30mm(max) Brass

Note:E-Stamping before Tin-plated

B2012HV 2.00mm pitch 180° Dual Row Housing

Reference lnformations:

*Material: Nylon 46,UL94V-0
*Suitable H.R B2012V series Terminal

Ordering Information & Dimensions:

PART NO. Dimensions
AB

B2012HV-05P 4.00 7.15

B2012HV-07P 6.00 9.15

B2012HV-09P 8.00 11.15

B2012HV-11P 10.00 13.15

B2012HV-13P 12.00 15.15

B2012HV-15P 14.00 17.15

B2012HV-17P 16.00 19.15

B2012HV-19P 18.00 21.15

B2012HV-21P 20.00 23.15

B2012HV-23P 22.00 25.15

B2012HV-25P 24.00 27.15

B2012HV-27P 26.00 29.15

B2012HV-29P 28.00 31.15

B2012HV-31P 30.00 33.15

Unit:mm
