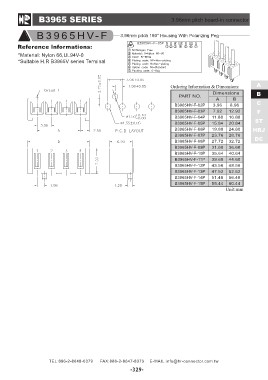

B3965 SERIES 3.96mm pitch board-in connector
B3965HV-F 3.96mm pitch 180° Housing With Polarizing Peg
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R B3965V series Terminal
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
AB F
ST
B3965HV-F-02P 3.96 8.96 HRJ
DC
B3965HV-F-03P 7.92 12.92
B3965HV-F-04P 11.88 16.88
B3965HV-F-05P 15.84 20.84
B3965HV-F-06P 19.80 24.80
B3965HV-F-07P 23.76 28.76
B3965HV-F-08P 27.72 32.72
B3965HV-F-09P 31.68 36.68
B3965HV-F-10P 35.64 40.64
B3965HV-F-11P 39.60 44.60
B3965HV-F-12P 43.56 48.56
B3965HV-F-13P 47.52 52.52
B3965HV-F-14P 51.48 56.48
B3965HV-F-15P 55.44 60.44
Unit:mm
