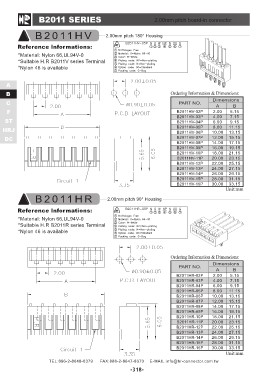

B2011 SERIES 2.00mm pitch board-in connector
BA 02 80 01 10 H VI 2.00mm pitch 180° Housing
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R B2011V series Terminal
*Nylon 46 is available
A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F
ST B2011HV-02P AB
HRJ B2011HV-03P
DC B2011HV-04P 2.00 5.15
B2011HV-05P 4.00 7.15
B2011HV-06P 6.00 9.15
B2011HV-07P 8.00 11.15
B2011HV-08P 10.00 13.15
B2011HV-09P 12.00 15.15
B2011HV-10P 14.00 17.15
B2011HV-11P 16.00 19.15
B2011HV-12P 18.00 21.15
B2011HV-13P 20.00 23.15
B2011HV-14P 22.00 25.15
B2011HV-15P 24.00 27.15
B2011HV-16P 26.00 29.15
28.00 31.15
30.00 33.15
Unit:mm
AB 20 08 01 10 H RI 2.00mm pitch 90° Housing
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R B2011R series Terminal
*Nylon 46 is available
Ordering Information & Dimensions:
PART NO. Dimensions
B2011HR-02P AB
B2011HR-03P
B2011HR-04P 2.00 5.15
B2011HR-05P 4.00 7.15
B2011HR-06P 6.00 9.15
B2011HR-07P 8.00 11.15
B2011HR-08P 10.00 13.15
B2011HR-09P 12.00 15.15
B2011HR-10P 14.00 17.15
B2011HR-11P 16.00 19.15
B2011HR-12P 18.00 21.15
B2011HR-13P 20.00 23.15
B2011HR-14P 22.00 25.15
B2011HR-15P 24.00 27.15
B2011HR-16P 26.00 29.15
28.00 31.15
30.00 33.15
Unit:mm
