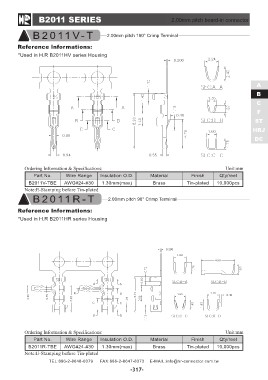

B2011 SERIES 2.00mm pitch board-in connector

BA20081010VH-IT 2.00mm pitch 180° Crimp Terminal

Reference lnformations:
*Used in H.R B2011HV series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated
B2011V-TBE AWG#24-#30 1.30mm(max) Brass

Note:E-Stamping before Tin-plated

BA20081010RH-IT 2.00mm pitch 90° Crimp Terminal

Reference lnformations:
*Used in H.R B2011HR series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Brass Tin-plated
B2011R-TBE AWG#24-#30 1.30mm(max)

Note:E-Stamping before Tin-plated
