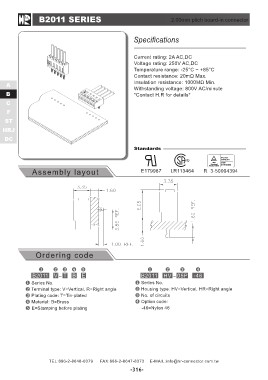

B2011 SERIES 2.00mm pitch board-in connector

A Specifications
B
C Current rating: 2A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 800V AC/minute
Assembly layout *Contact H.R for details*

Standards

® TÜV BAUART
Rheinland GEPRÜFT
LR113464 Product Aafety
TYPE
APPROVED

E179987 R 3-50004394

Ordering code B2011 HV - 05P -46

B2011 V - T B E Series No.
Housing type: HV=Vertical, HR=Right angle
Series No. No. of circuits
Terminal type: V=Vertical, R=Right angle Option code:
Plating code: T=Tin-plated -46=Nylon 46
Material: B=Brass
E=Stamping before plating

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-316-
