P. 17

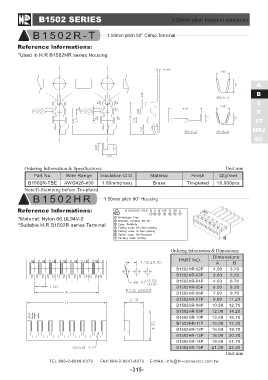

B1502 SERIES 1.50mm pitch board-in connector
B1502R-T 1.50mm pitch 90° Crimp Terminal
Reference lnformations:
*Used in H.R B1502HR series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated
B1502R-TBE AWG#28-#30 1.00mm(max) Brass
Note:E-Stamping before Tin-plated
B1502HR 1.50mm pitch 90° Housing
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R B1502R series Terminal
Ordering Information & Dimensions:
PART NO. Dimensions
AB
B1502HR-02P 1.50 3.70
B1502HR-03P 3.00 5.20
B1502HR-04P 4.50 6.70
B1502HR-05P 6.00 8.20
B1502HR-06P 7.50 9.70
B1502HR-07P 9.00 11.20
B1502HR-08P 10.50 12.70
B1502HR-09P 12.00 14.20
B1502HR-10P 13.50 15.70
B1502HR-11P 15.00 17.20
B1502HR-12P 16.50 18.70
B1502HR-13P 18.00 20.20
B1502HR-14P 19.50 21.70
B1502HR-15P 21.00 23.20
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-315-
