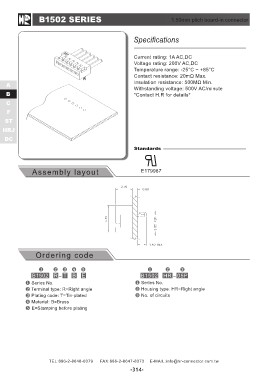

B1502 SERIES 1.50mm pitch board-in connector
A Specifications
B
C Current rating: 1A AC,DC
F Voltage rating: 200V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 500MΩ Min.
Withstanding voltage: 500V AC/minute
Assembly layout *Contact H.R for details*
Standards
E179987
Ordering code B1502 HR - 05P
B1502 R - T B E Series No.
Housing type: HR=Right angle
Series No. No. of circuits
Terminal type: R=Right angle
Plating code: T=Tin-plated
Material: B=Brass
E=Stamping before plating
