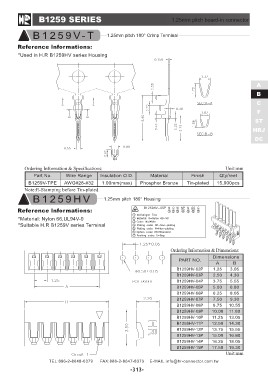

B1259 SERIES 1.25mm pitch board-in connector

B1259V-T 1.25mm pitch 180° Crimp Terminal

Reference lnformations:
*Used in H.R B1259HV series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Tin-plated
B1259V-TPE AWG#28-#32 1.00mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated

B1259HV 1.25mm pitch 180° Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R B1259V series Terminal

Ordering Information & Dimensions:

PART NO. Dimensions
AB

B1259HV-02P 1.25 3.05

B1259HV-03P 2.50 4.30

B1259HV-04P 3.75 5.55

B1259HV-05P 5.00 6.80

B1259HV-06P 6.25 8.05

B1259HV-07P 7.50 9.30

B1259HV-08P 8.75 10.55

B1259HV-09P 10.00 11.80

B1259HV-10P 11.25 13.05

B1259HV-11P 12.50 14.30

B1259HV-12P 13.75 15.55

B1259HV-13P 15.00 16.80

B1259HV-14P 16.25 18.05

B1259HV-15P 17.50 19.30

Unit:mm
