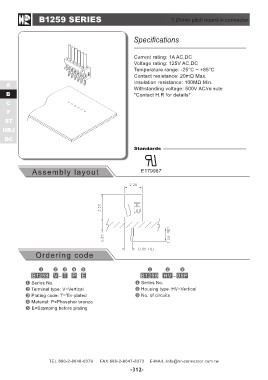

B1259 SERIES 1.25mm pitch board-in connector
A Specifications
B
C Current rating: 1A AC,DC
F Voltage rating: 125V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 100MΩ Min.
Withstanding voltage: 500V AC/minute
Assembly layout *Contact H.R for details*
Standards
E179987
Ordering code B1259 HV - 05P
B1259 V - T P E Series No.
Housing type: HV=Vertical
Series No. No. of circuits
Terminal type: V=Vertical
Plating code: T=Tin-plated
Material: P=Phosphor bronze
E=Stamping before plating
